2022-2023年Bebras挑战练习题-Maze(迷宫)

The Little Beaver is in a maze. The maze is made up of two floors, each with its own grid of obstacles.小海狸被困在了一个迷宫里。这个迷宫由两层组成,每层都有自己的障碍网格。

2022-2023年Bebras挑战练习题-Maze(迷宫)

The Little Beaver can move between two adjacent cells within one floor if there is no wall between the cells; this takes one second.小海狸可以在同一层内相邻的两个格子之间移动,前提是这两个格子之间没有墙;这需要花费一秒钟。

The Little Beaver can also use her magic wand to move to the corresponding cell of the other floor; this takes five seconds.小海狸还可以用她的魔法棒移动到另一层对应的单元格;这需要五秒钟。

For example, if the Little Beaver is in cell A, there are three possible moves:例如,如果小海狸在 A 单元格,那么有三种可能的移动方式:

1. Move left. This move takes 1 second.1. 向左移动。此动作耗时 1 秒。

2. Move down. This move takes 1 second.2. 向下移动。此动作耗时 1 秒。

3. Move to the corresponding cell of the other floor. This move takes 5 seconds.3. 移动到另一层对应的单元格。此移动耗时 5 秒。

The Little Beaver starts at cell A and wants to reach cell B as soon as possible. 小海狸从 A 单元格出发,想要尽快到达 B 单元格。

Question:问题:

What is the shortest time needed for the Little Beaver to reach cell B, if starting from cell A?如果小海狸从 A 单元格出发,那么它到达 B 单元格所需的最短时间是多少?

A. 16

B. 17

C. 18

D. 20











Explanation 解释

Answer: 答案:

18

Explanation: 解释:

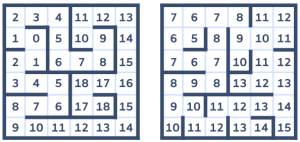

The given problem is a shortest path problem. There are different approaches to obtain the solution, one of which is to apply Dijkstra’s algorithm to find the shortest path from A to B. The image below shows the lengths of the optimal paths to all cells if starting from A.给定的问题是一个最短路径问题。有多种方法可以得到解决方案,其中之一是应用迪杰斯特拉算法来找出从 A 到 B 的最短路径。下面的图片展示了从 A 出发到达所有单元格的最优路径长度。

2022-2023年Bebras挑战练习题-Maze(迷宫)

One can see that the length of the shortest path to B is 18. One of the possible optimal paths is the following: 可以看出,到 B 点的最短路径长度为 18。其中一条可能的最优路径如下:

Answer D (20) corresponds to the optimal path when moving only within one floor. Answer A (16) corresponds to the lower bound of the time to reach B from A if going via the other floor and assuming there are no walls (i. e. [Manhattan distance from A to B] + [time to move between floors]).答案 D(20)对应的是仅在一楼内移动时的最优路径。答案 A(16)对应的是从 A 到 B 经过另一层楼且假设没有墙壁(即从 A 到 B 的曼哈顿距离加上楼层间移动的时间)时的最短时间下限。
